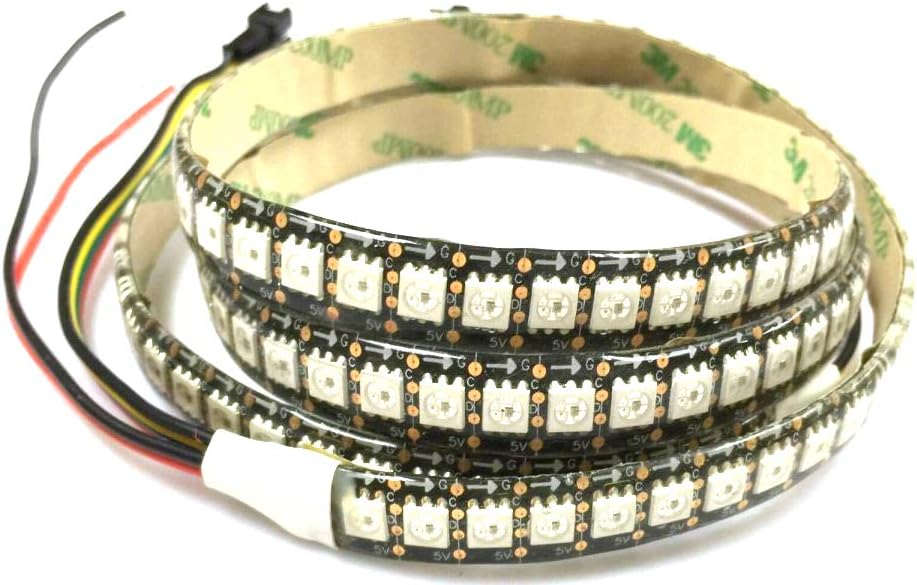

APA107 RGB Pixel LED Strip Light 1M 144 LEDs/m APA107 IC Built-in the 5050 SMD RGB LED DC5V Waterproof IP65 (White PCB)

IC Model: APA107 IC chip; LED Type: 5050 RGB SMD LED; LED Quantity: 144LEDs/m, every LED is cuttable, each LED is separately controlled; Pixels Qty: 144Pixels/m; Pitch: 6.94mm(1000/144); Emitting Color: digital full color RGB, can be adjusted; Standard Operating Voltage: DC 5V input; Max Power: 43.2W/m; IP Grade:waterproof silicon tube IP65; FPCB color: White/Black PCB; FPCB board Dimensions: Width:12mm, thickness:2.5mm; view angle: 120degree; Gray Scale: 256; Certification: CE & RoHS; wiring instruction: 4Pins JST connector: RED cable = +5V (5V power supply's positive pole) Green cable = DAT (DATA, LED Pixel Controller's DAT Port) Yellow cable = CLK (CLK, LED Pixel Controller's CLK Port) Black cable = GND (Ground, LED Pixel controller's GND Port) Extra two cable: RED cable = +5V ( 5V power supply's positive pole) Black cable = - 5V (5V power supply's negative pole) What is APA107: APA107 is the newest IC chip! APA102 is the update version for APA102/APA102C chip. The same as APA102, can use the same led controller and same led programs as APA102/APA102C.

• Fully addressable (each LED can have it's own color and brightness)
• These 5050 RGB Pixels are digitally-controllable lights you can set to any color, or animate. The color of the light were highly consistent, cost-effective
• Works great and is easy to program, because the addressable IC is built-in the 5050SMD and it makes this led strip to light up each individual 5050SMD at your wish. Can be cut each 5050SMD individually, and will works great without damage
• Need only 5v, can work on USB power. Check out youtube for APA107 videos, you will find them inspiring
• Making led screen, led wall, advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Christmas or wedding party decoration
