Complete Kit of 32" Live Axle +145/70-6'' Tubeless Wheel Tire Rim +72V 3000W Brushless Electric Motor & Controller +Steering Spindle for ATV UTV Quad 4 Wheelers Dirt Bike Trike Drift Go Kart
Product details
| Management number | 221737117 | Release Date | 2026/05/03 | List Price | $436.40 | Model Number | 221737117 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DisplayCompatible with 48V & 72V, shows real-time battery level & power consumption, ensuring accurate mileage.Working voltage: 48V 60V 64V 72VTemperature range: -20-150C10 functions in 1: power display,speedometer, odometer, turn signal indicators, head light, gear indicator,cruise, brake, ECU, safety beltBrushless Motor ControllerCurrent: 45A-60AVoltage:36V/42V/48V/52V/58V/60V/64V/72V/84VPhase: Automatic Identification (60°/120° both will fit)MOS tube: 18mos (double row)High Speed MotorRate Voltage: 72VRate Power: 3000WRate Current: 43ARate Speed: 4900rpm/minMax Speed: 6500rpm/minTorque: 5.8N.mThe maximum current is 43A; under no-load conditions, the rated speed is 4900rpm/min, maximum is about 6500r/min, but itis best to use a 45-60A controller.It also boasts a high peak efficiency of ≥ 85% and can operate within a temperature range below 120°C.BatteryITEM NO: 6-DZM-12Product Dimensions: 3.9"D x 6.0"W x 3.9"HVehicle Service Type: Motorcycle, ATV,Scooter, Dirt BikeVoltage: 12 VoltsBattery Cell Composition: Sealed Lead AcidAmperage: 12AH100% Maintenance Free* Battery lifespan depends on usage, charging practices, and environmental conditions.Our motorcycle battery is designed for longevity.

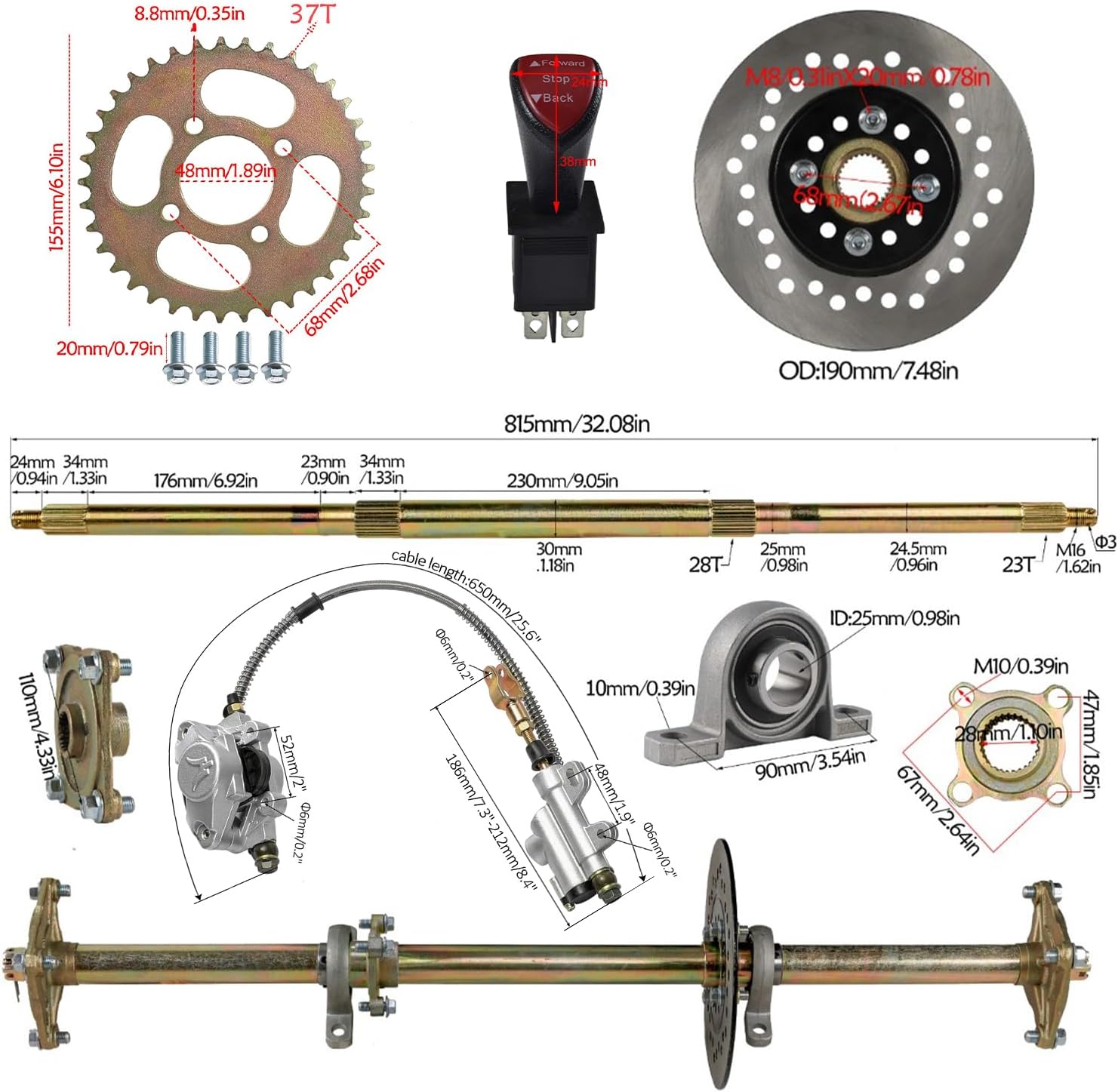

- This axle Overall length 32 inch (810mm), 1" in diameter and the thickest part of the axle is 1 3/16" (30mm), fits 6"-10" wheels, made by high strength chrome, can support more than 500lbs
- Brushless DC Motor, Aluminum Body, Output: 3000w / Rated speed: 4900RPM / Torque: 5.8N / Weight: 4657G, Shaft diameter: 12mm / Applicable Controller: 72V 3000W

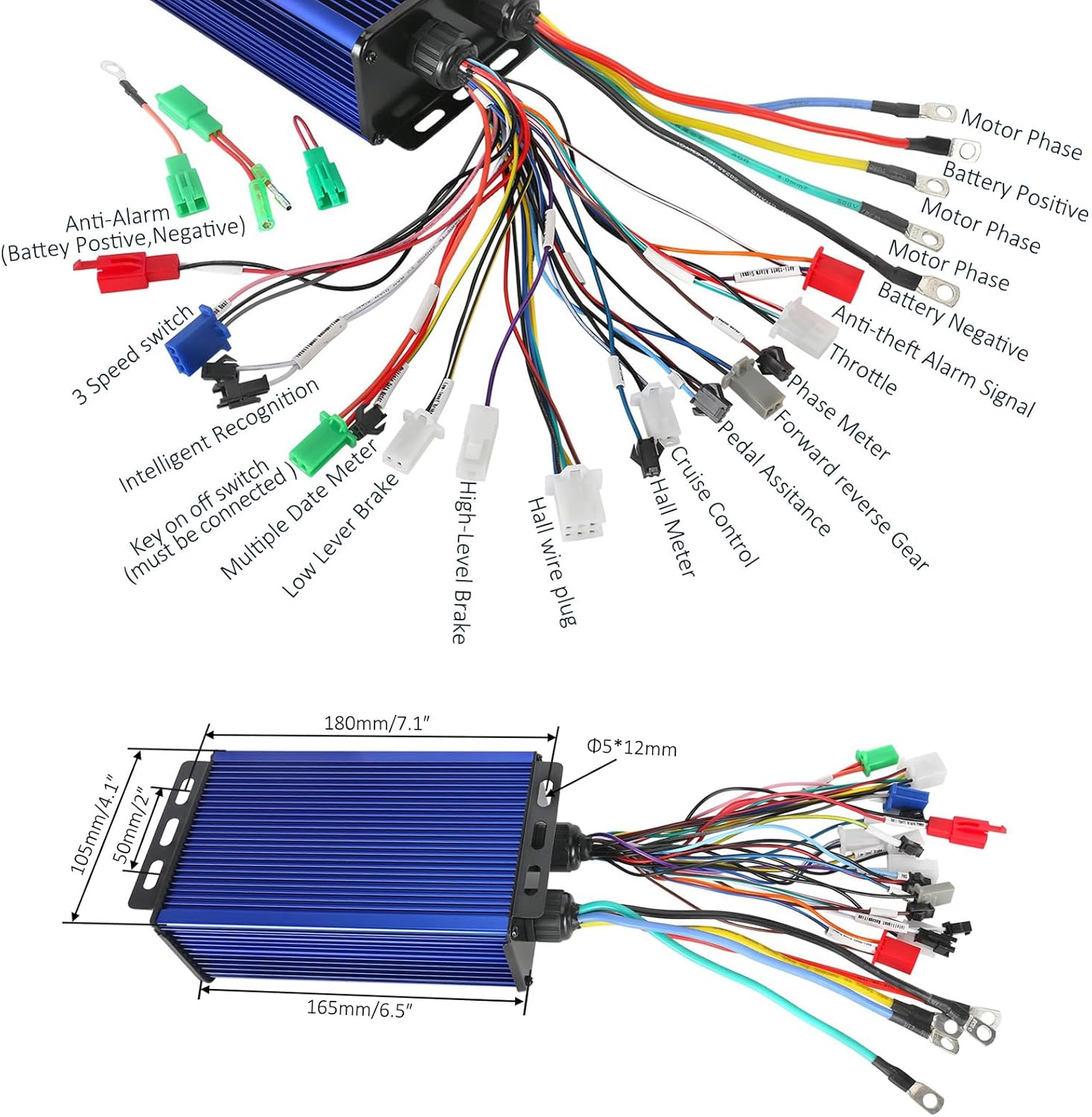

- Universal Brushless Controller (6.5''L x 4.1''W), Nominal voltage: 36v 42v 48v 52v 58v 60v 64v 72v 84v, Maximum current: 45A-60A / Watt: 350-3000w. Brake: Low/High electrical level
- 145/70-6 Tubeless Wheel Tire, Heavy 4 ply rated nylon construction, 6'' rim, 3 bolt pattern, 14.7'' tall & 5.5'' wide, Centre to Centre of bolt 3'' (78mm)
- Kit includes: 1 axle kit +6 batteries +6 connect cables +4 tires +1 motor +1 controller +1 display +2 wiring harness +1 steering wheel +1 tie rod rack adjustable shaft +4 wheel hubs +2 steering spindle +1 brake caliper +1 chain +2 sprocket +1 charging port +1 brake switch +1 brake pedal +1 terminal block +1 ignition switch +1 forward reverse switch +1 toggle switch +1 miniature circuit breaker
| Size | 145/70-6 |
|---|---|
| Color | black |
| Rim Size | 6 Inches |
| Brand Name | WPHMOTO |
| Load Index | 28 |
| Wheel Size | 6 Inches |
| Manufacturer | WPHMOTO |
| Model Number | tl104+tk013+tk017+tk033 |
| Material Type | Nylon |
| Exterior Finish | Chrome |
| Automotive Fit Type | Universal Fit |
| Included Components | 4x tire |
| Pitch Circle Diameter | 3.1 Inches |
| Manufacturer Part Number | 104 |
| Compatible with Vehicle Type | Go Kart |
| Manufacturer Warranty Description | 90 days |
