JTLB 24V-48V Waterproof LCD Display Panel Electric Bicycle Scooter Brushless Controller Kit

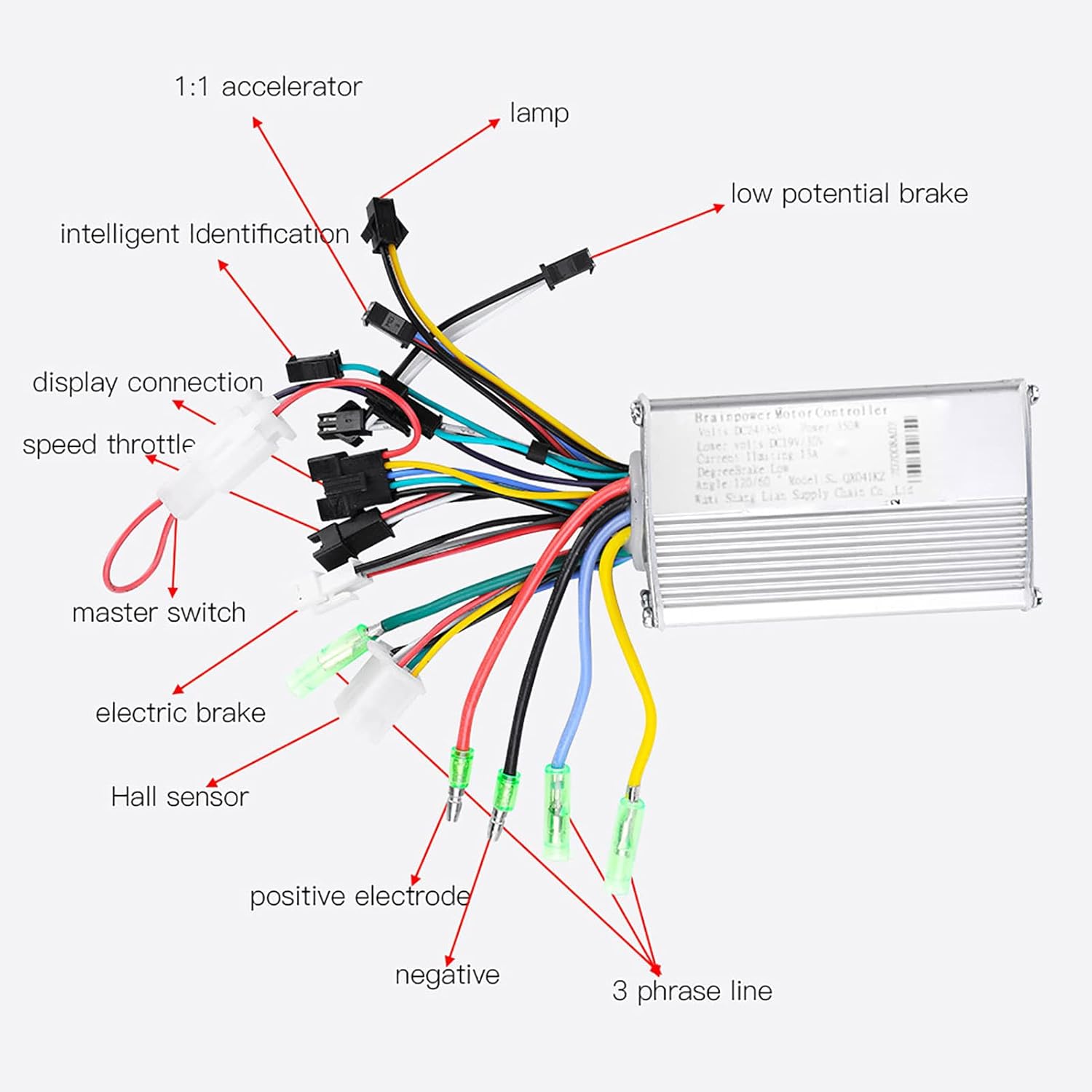

Specification: Material: plastic + LCD + metal. Color: as picture show Options: 1#24V-36V; 2#36V-48V. Power: 250W/350W Low voltage protection: 1#24V-36V: 19V/30V; 2#36V-48V: 30V-41V. Waterproof: Rainproof. Controller size: approx. 8.8 x 5.2 x 3 cm. Display size: approx. 8 x 5 cm. Weight: approx. 332g Package includes: 1 x LCD display 1 x Controller Note: Each cable is colour labelled for different applications. Red: Positive electrode Black: negative electrode Yellow:Output Brown: positive lamp electrode White: Negative electrode Blue: Turn Signal Green: signal reception. Please note that the controller model is sent randomly, and make sure you do not mind before ordering. Application: Get the product, please make sure to match the phase first:The intelligent identification line to the connector of the identification of the motor, identification line is two green lines, plugged in, make sure the motor runs automatically, at this time the direction of the motor if the correct, then run 10 to 15 seconds to disconnect the identification line if the direction is the oppart, then separate the identification of the direction is the identification line and then plug in again. The direction of the motor is changed to positive rotation and then run for 10 to 15 seconds, separate the identification line, the direction of the motor is changed to positive rotation. Then run for 10-15 seconds, disconnect the identification line, done. After completing the identification, identification line to get the disconnected state, do not plug back in.

• This display is made of high-quality materials, lightweight, rainproof, robust and durable

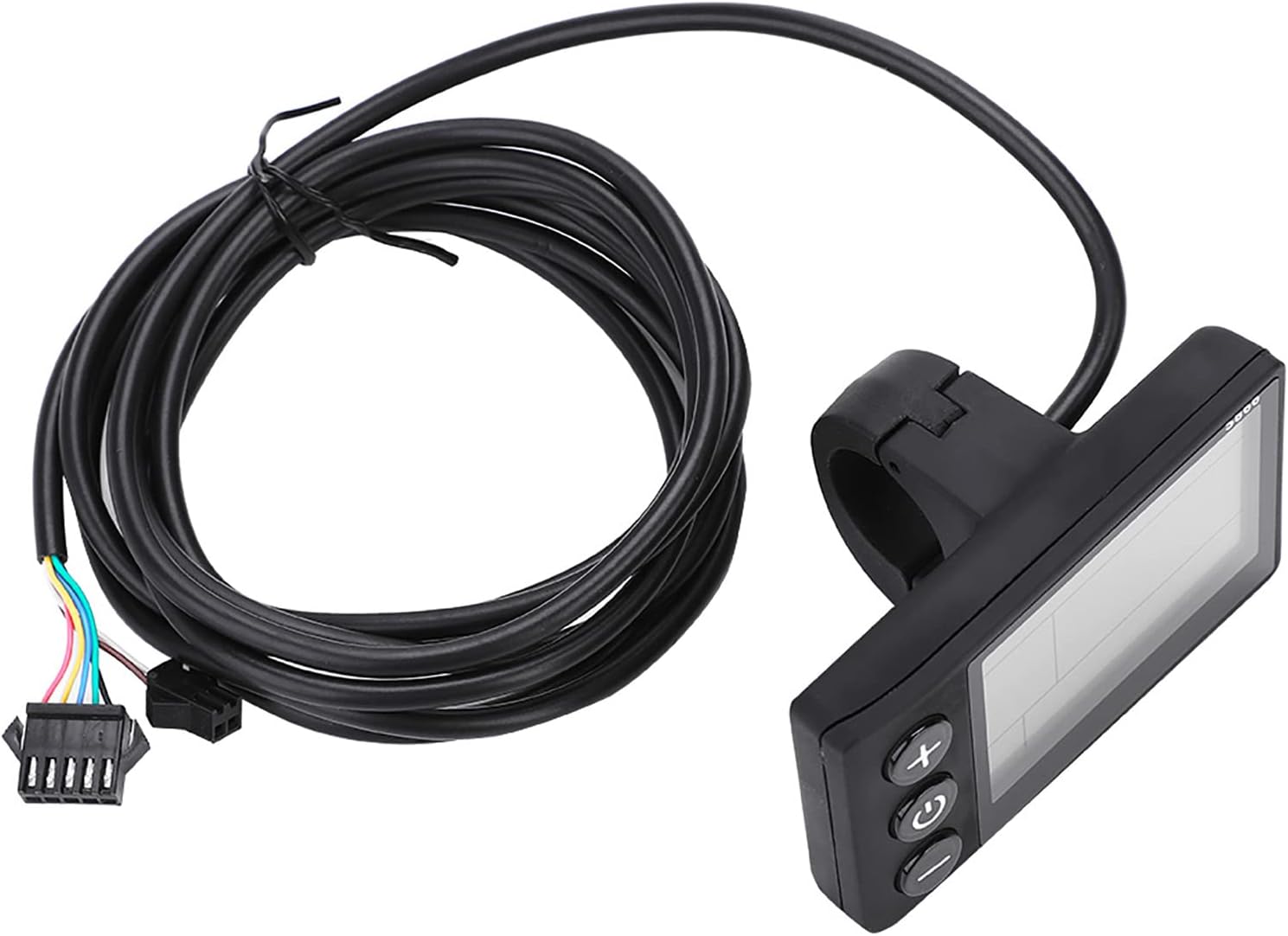

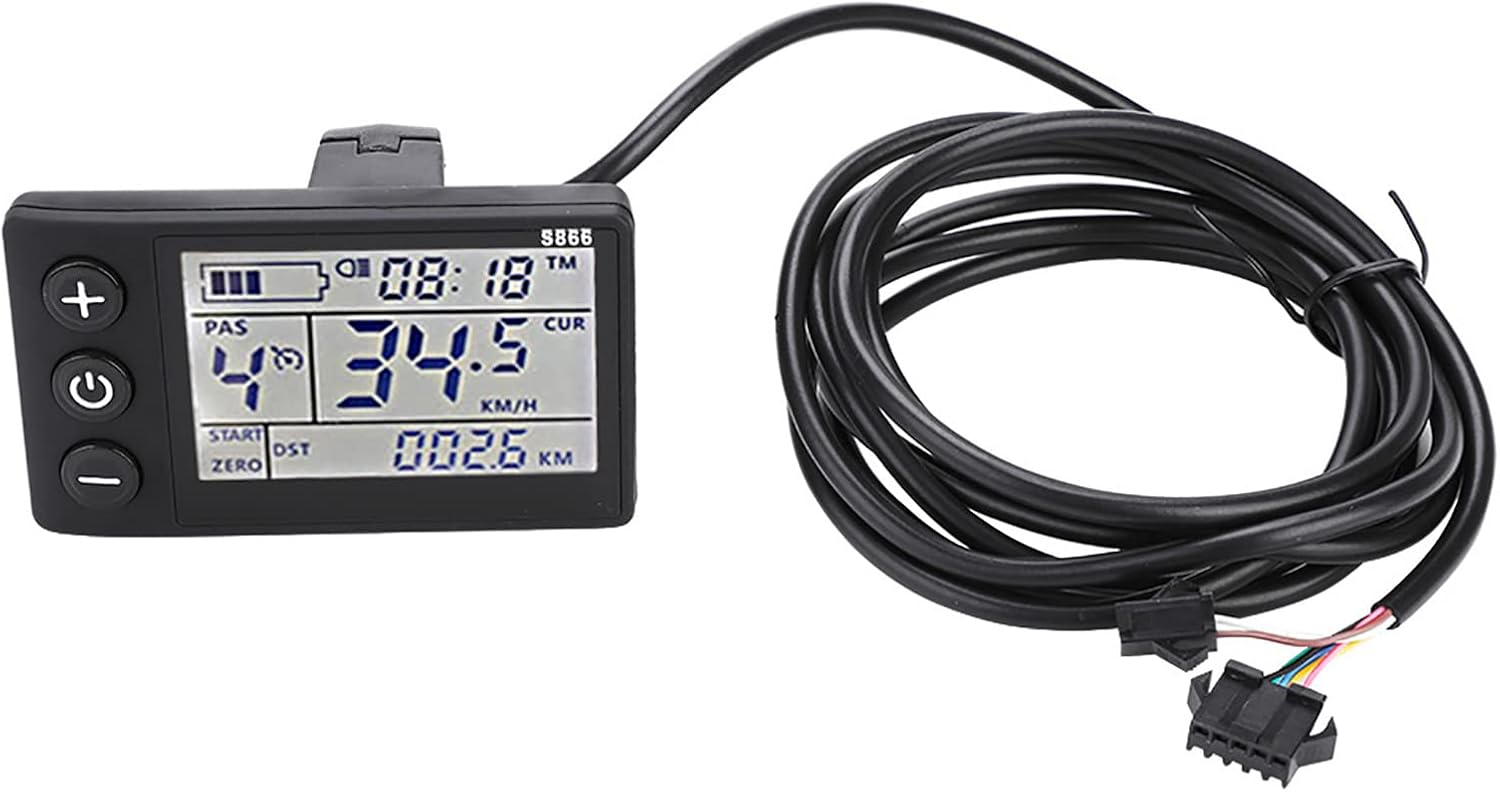

• LCD display can clearly display the status and data, backlight allows you to see the screen clearly in weak environment, buttons quick operation, easy to use
• Can set the power-on password, control the lights, cruise and boost. The vehicle speed is divided into gears, the number of gear positions is 3/5/9 gear optional, and turn the handle can be selected to be divided into gears or not.
• The controller is brushless, works silently and sensitive to the condition of the e-bike
• Suitable for electric bicycles, cars, scooters
